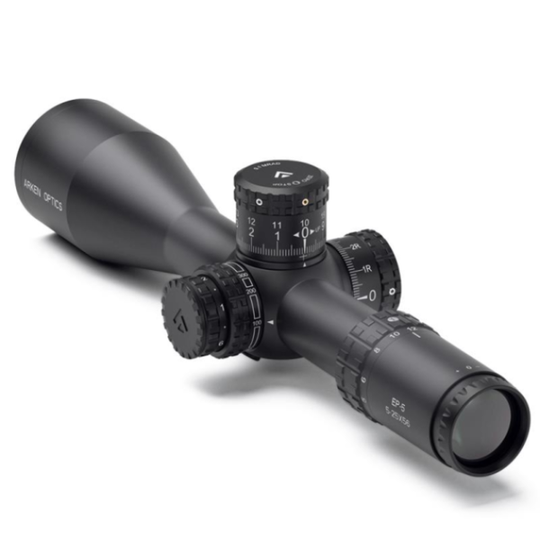

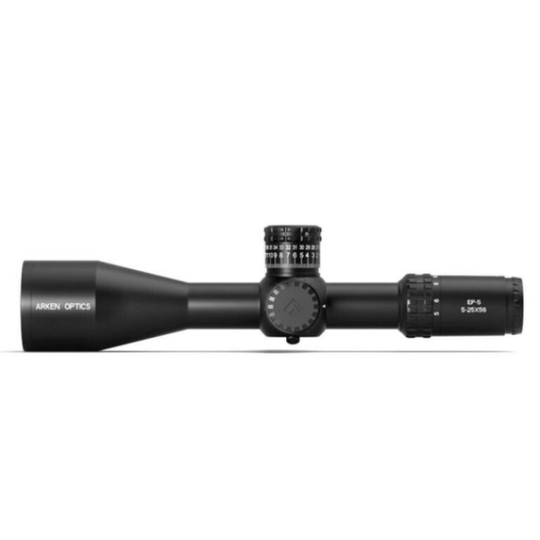

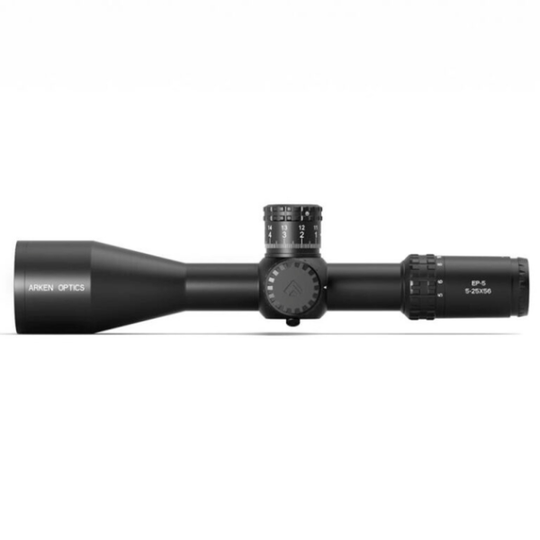

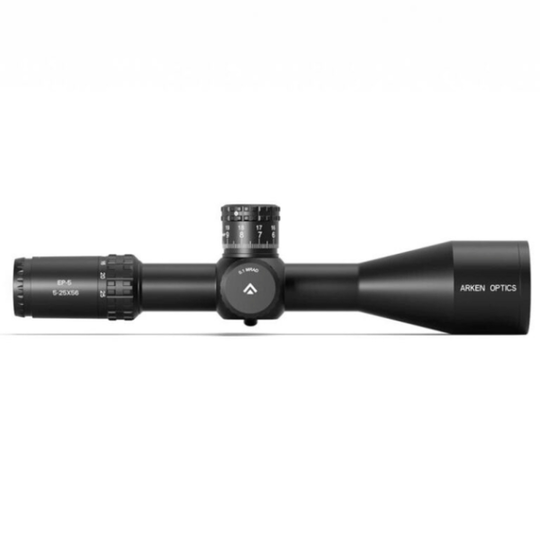

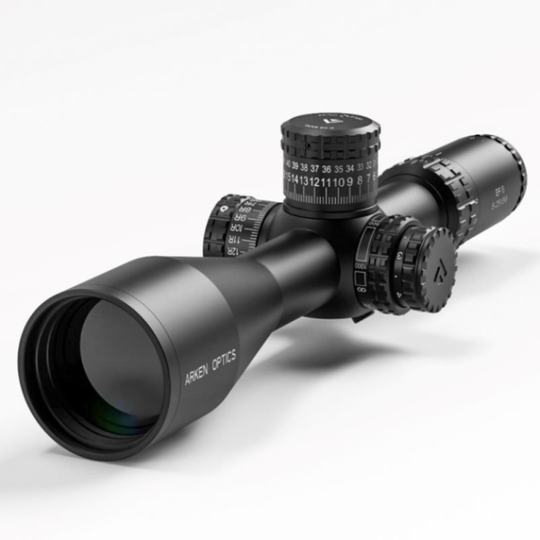

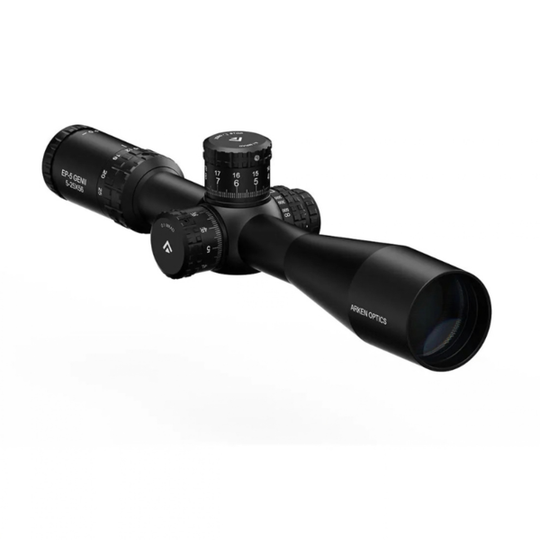

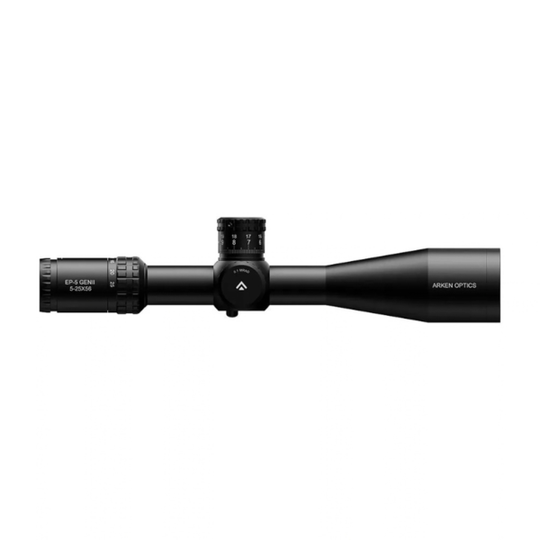

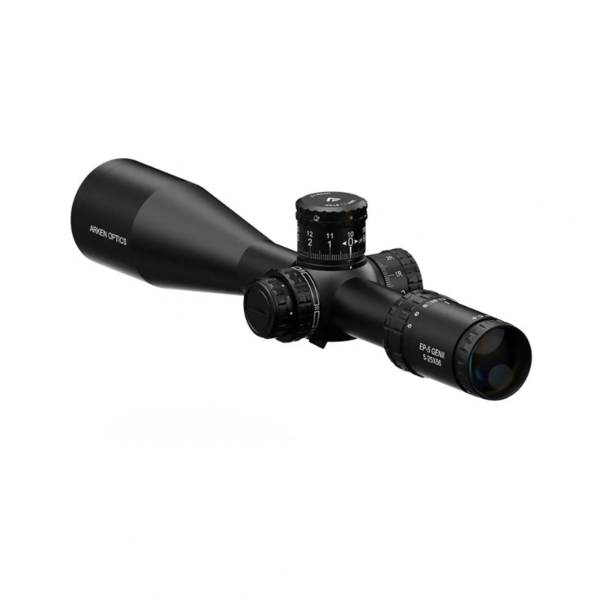

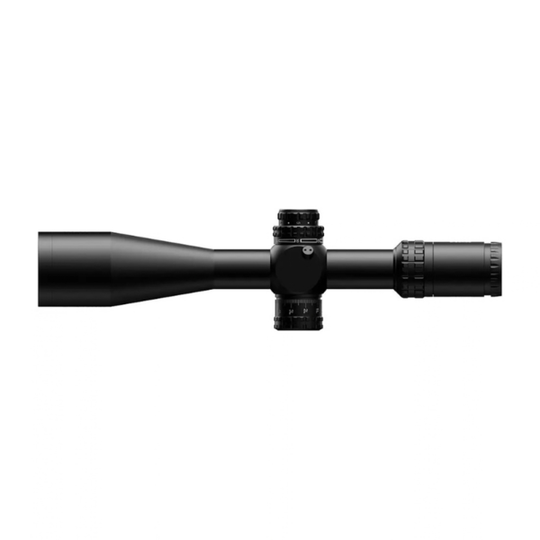

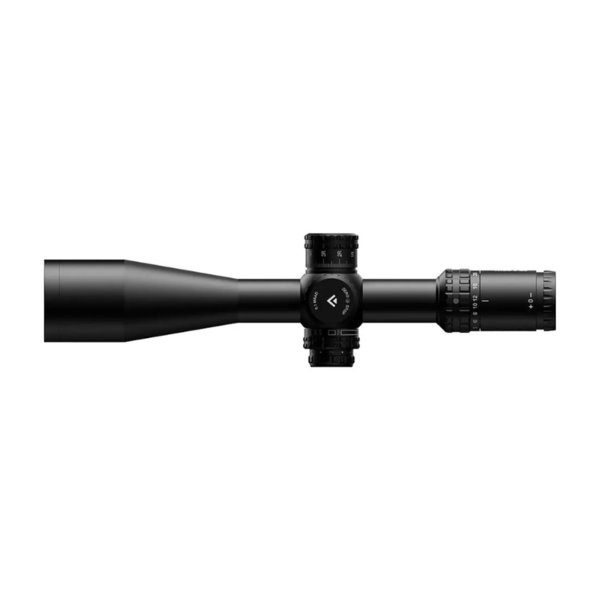

Arken EP5 5-25X56 FFP MIL VPR Reticle with Zero Stop – 34mm Tube Manual:
Lifetime Warranty
Precision Tracking Guaranteed
ED Japanese Glass
First Focal Plane (FFP)
Zero Stop
Specification:
Magnification: 5-25x
Objective Diameter: 56 mm
Eye Relief: 3.4 inches
Field of View: 25.3-4.9 ft @100 Yards
Tube Size: 34 mm
Turret Adjustment: 1/10 MIL
Reticle Position: First Focal Plane

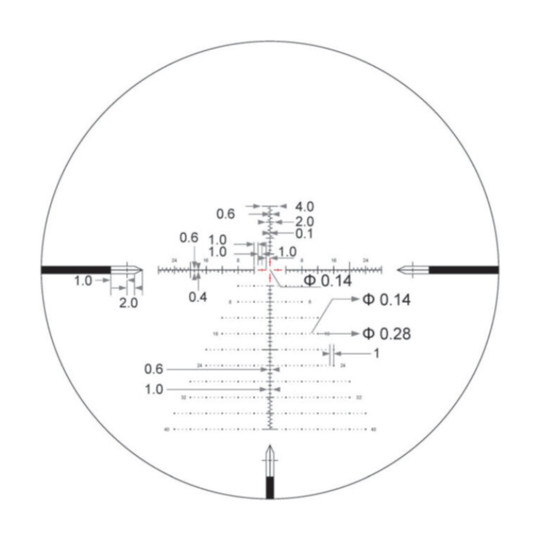

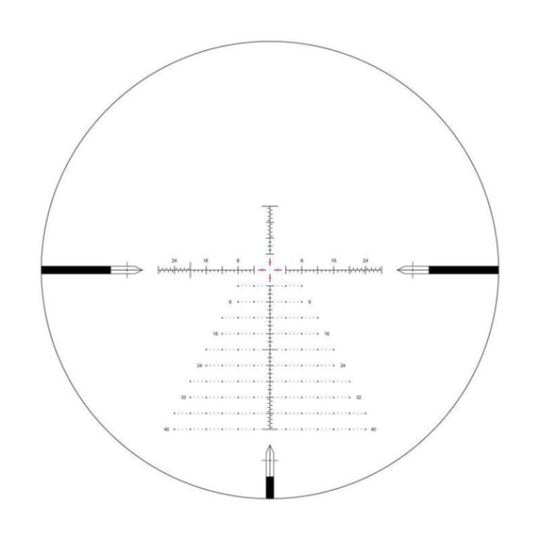

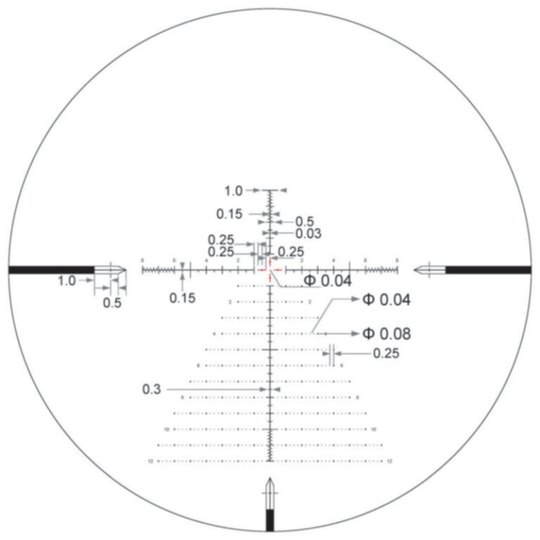

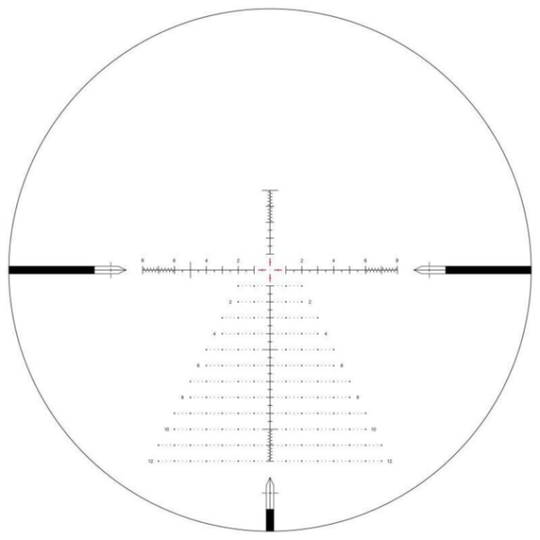

Reticle Details: VPR MIL

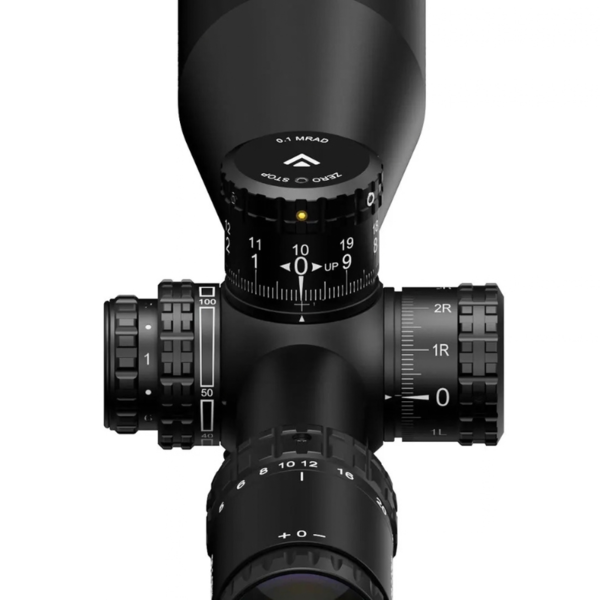

Zero Stop: AZS Zero Stop System
Zero Reset: Yes
Elevation Adj. Range: 32 MIL
Windage Adj. Range: 16 MIL
Adjustment Per Revolution: 10 MIL
Parallax: Side Parallax Adjustment 25Yds – Infinity
Illuminated Reticle: Red
Turret Rotation: Counter Clockwise (CCW)
Length: 14 inches
Color: Matte Black
Weight: 39.2 oz
Sunshade: yes

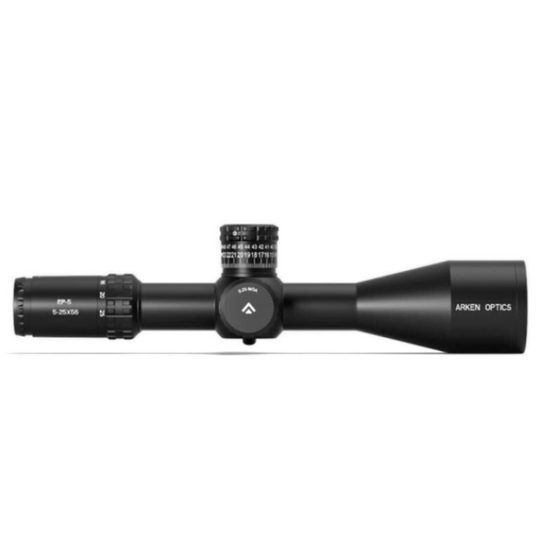

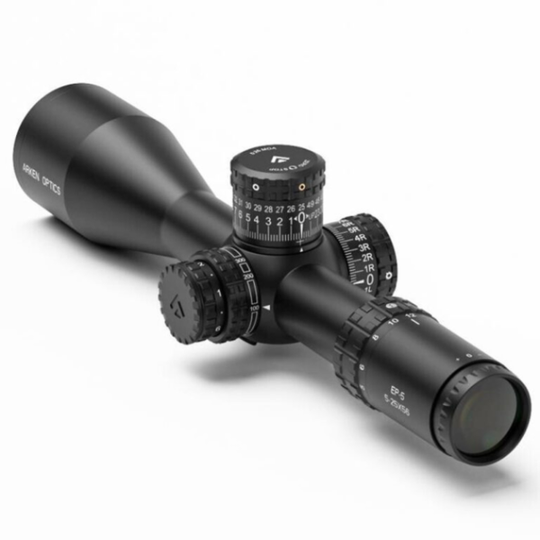

Arken EP5 5-25X56 FFP MOA VPR Reticle with Zero Stop – 34mm Tube Manual:
Lifetime Warranty
Precision Tracking Guaranteed
ED Japanese Glass
First Focal Plane (FFP)
Zero Stop
Specification:
Magnification: 5-25x
Objective Diameter: 56 mm
Eye Relief: 3.4 inches
Field of View: 25.3-4.9 ft @100 Yards
Tube Size: 34 mm
Turret Adjustment: 1/4 MOA
Reticle Position: First Focal Plane

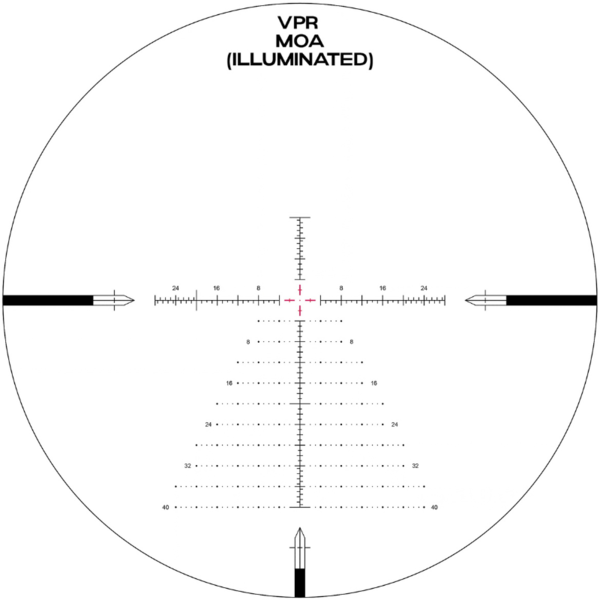

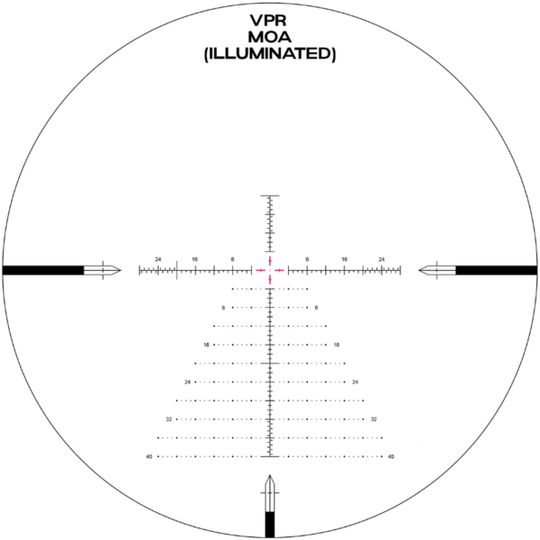

Reticle Details: VPR MOA
Zero Stop: AZS Zero Stop System
Zero Reset: Yes
Elevation Adj. Range: 110 MOA
Windage Adj. Range: 55 MOA
Adjustment Per Revolution: 25 MOA
Parallax: Side Parallax Adjustment 25Yds – Infinity
Illuminated Reticle: Red
Turret Rotation: Counter Clockwise (CCW)
Length: 14 inches
Color: Matte Black
Weight: 39.2 oz
Sunshade: yes
