DESCRIPTION

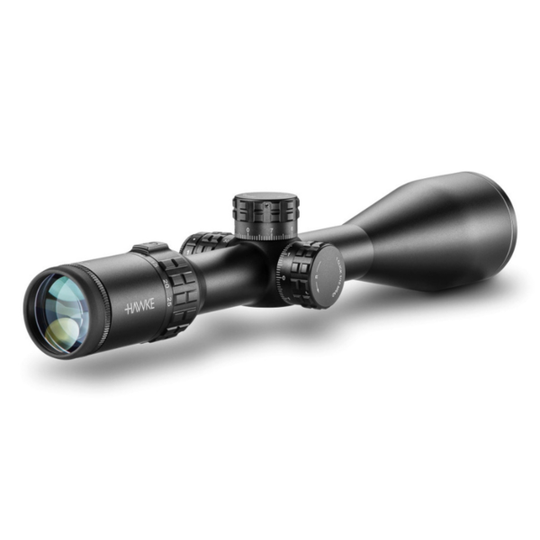

The Hawke Frontier FFP 5-25×56mm Riflescope is a 21 layer fully multi-coated optics, 5× ratio optical systems with a side focus control for parallax adjustment, built on a 30mm mono-tube chassis for superior strength, long eye relief for high recoil and magnum calibres and glass etched reticle with red illumination. Has 6 levels of brightness with off positions in-between, 1⁄10 MRAD exposed zero locks 'n' stop turrets and Zoom ring with thumb lever and locking ocular.

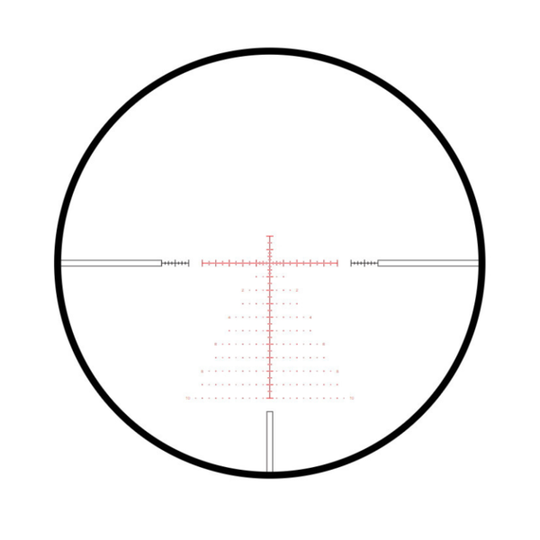

The FFP Mil Pro reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. It is a versatile reticle that provides aim points no matter how extreme the distance. Every second Mil spacing on the lower section is numbered to ensure the quick and easy acquisition of target and ease of reference. The FFP Mil Pro 25× has additional 1⁄4 Mil aim points on the centre section of the reticle to give even greater precision.
FEATURES
- 21 Layer fully multi-coated optics
- 5× Ratio optical systems
- 30mm Mono-tube chassis for superior strength
- 6 Levels of brightness with off positions in-between
- 1⁄10 MRAD exposed zero locks 'n' stop turrets (Patent Pending)
- Side focus control for parallax adjustment
- Long eye relief for high recoil and magnum calibres
- Glass etched reticle with red illumination
- Zoom ring with thumb lever and locking ocular
SPECIFICATIONS
| Chassis | 30mm Mono-tube |
| Optical System | 5-25x |
| Objective | 56mm |
| Reticle | FFP Mil Pro (25x) |
| Illumination | Red - 6 Levels |
| Focus/Parallax | Side Focus - 14m / 15yds to infinity |
| Field of View | 7.5 - 1.5m / 22.5 - 4.5ft |
| Eye Relief | 102mm / 4" |
| Length | 365mm / 14.4" |
| Weight | 698g / 24.8oz |
| Material | Aluminium |
| Exit Pupil | 11.2-2.2mm / 0.44-0.09" |
| Ocular Type | Locking Fast Focus |
| Lens Coating | Fully Multi-Coated - 21 Layers |
| Power Selector Style | Removable Zoom Lever |
| Focal Plane | First Focal Plane (FFP) |
| Elevation Increment | 1/10 MRAD |
| Elevation Adjustment Range | 19 MRAD |
| Windage Increment | 1/10 MRAD |
| Windage Adjustment Range | 19 MRAD |
| Turret Caps | No |
| Turret Type | Exposed Zero Locks 'n' Stop Turrets ( Patent Pending) |
