Description

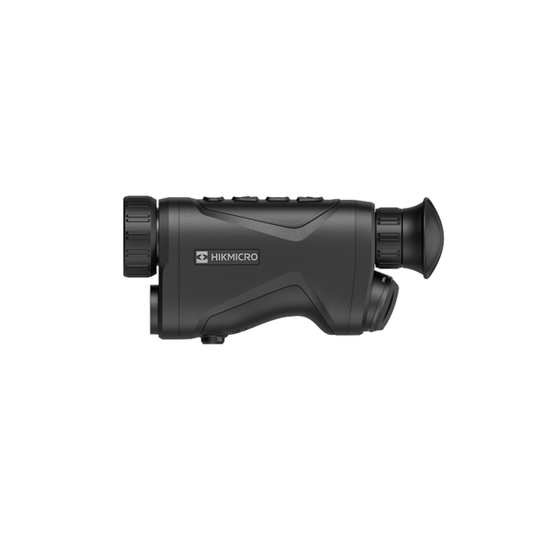

HIKMICRO Condor CH35L Thermal Monocular with a Built-In Precision Laser Rangefinder.

The Condor CH35L thermal monocular is equipped with a 384 × 288 @ 12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1,000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.

Key Features

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12 μm detector
• 1024 × 768 resolution 0.39-inch OLED display
• Advanced image processing technology
• Image Pro for enhancing detail recognition.
• Zoom Pro for digital zooming without loss of picture quality.
• Replaceable and rechargeable Li-ion battery
• Up to 4.5 hours of continuous operation
• 400 g lightweight, with a compact and ergonomic design

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (Focal Length): 35 mm, f1.0
• Focus Mode: Focus Ring
• Detection Range: 1,800 m
• Focusing Distance: 3.5 m
• Magnification: 3.5× to 28.0× (8×)
• Field of View (H × V), Degrees / m @100 m: 7.5° × 5.6°/13.1 m × 9.7 m @ 100 m



Image Display

• Display: 1024 × 768, 0.39-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 4 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Image Pro: Yes
• Zoom Pro: Yes



System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Yes
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement : Yes



Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: 4.5-hour continuous running with CVBS and hotspot function off (@25°C)
• Type-C Power Supply: 5 VDC, 2 A; Supports External Power Supply



General

• Protection Level: IP67
• Dimension: 184.9 mm × 53 mm × 87.8 mm
• Weight: 400 g without battery
• Working Temperature: -30°C to +55°C



Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ± 1 m
• Min. Measuring Range: 10 m

What's in the box

• HIKMICRO Condor CH35L
• Protective Bag x1
• Quick Start Guide x1
• Non-dust Cloth x1
• USB Cable x1
• Charger x1
• Cell x3
