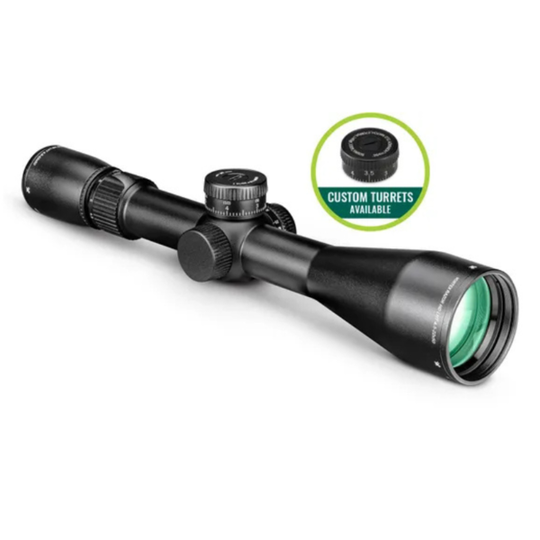

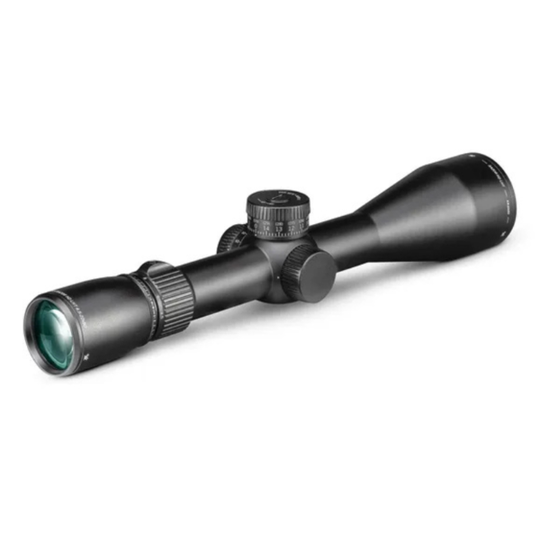

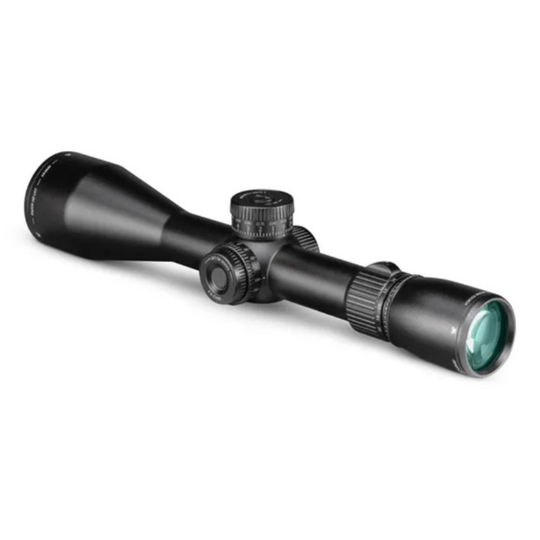

From the mountains to open country, the Razor® HD LHT™ is the precision riflescope you need to make distant shots feel easy. Stunning HD clarity and enhanced contrast reveal every detail, from counting kickers on a buck in dark timber or locking onto a tuft of shoulder hair over the vitals of an elk. Lightweight yet rugged, with push-button illumination and a rock-solid zero system, this top-of-the-line optic gives you the edge in the moments that matter most.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 13.3 | 1.9 | 2.2 | 5.6 | 3.4 | 4.2 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.3 | 1.7 |
| Magnification | 4.5-22x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | First Focal Plane |
| Reticle | XLR-2 (MOA) |
| Eye Relief | 4.0" |
| Field of View | 23.5' - 4.7' @ 100 yds |
| Turret Style | Exposed Elevation Capped Windage |
| Tube Size | 30 mm |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 75 MOA |
| Max Windage Adjustment | 45 MOA |
| Parallax Setting | 25 yds. - ∞ |
| Length | 13.3" |
| Weight | 21.7 oz |
| Elevation Travel Per Rotation | 15 MOA |
| Windage Travel Per Rotation | 15 MOA |
| Magnification | 4.5-22x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | First Focal Plane |
| Reticle | XLR-2 (MRAD) |
| Eye Relief | 4.0" |
| Field of View | 23.5' - 4.7' @ 100 yds |
| Turret Style | Exposed Elevation Capped Windage |
| Tube Size | 30 mm |
| Adjustment Graduation | .1 MRAD |
| Travel Per Rotation | 6 MRAD |
| Max Elevation Adjustment | 22.4 MRAD |
| Max Windage Adjustment | 12.7 MRAD |
| Parallax Setting | 20 m - ∞ |
| Length | 13.3" |
| Weight | 21.7 oz |
| Elevation Travel Per Rotation | 6 MRAD |
| Windage Travel Per Rotation | 6 MRAD |
Class Leading HD Optical System Stunning resolution and class-leading field of view combine to create our most advanced optical system.
RevStop® Zero System Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments.
XR™ Plus Lens Coatings Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Locking Elevation Turret Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments.
Lightweight Design 21.7 oz.
First Focal Plane Reticle A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Consistent subtensions allow accurate holdover and ranging at all magnifications. The reticle's size will appear larger at high magnifications and smaller at low magnification.
APO (Apochromatic) Index-matched lenses correct color across the entire visual spectrum.
Argon Gas Purged Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
Aircraft Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Armortek® Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Low-Glare Matte Black Anodize Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof Designed to withstand harsh weather conditions.
Shockproof Designed to withstand the highest levels of recoil and impact.
Fogproof Designed to withstand a wide range of temperatures.

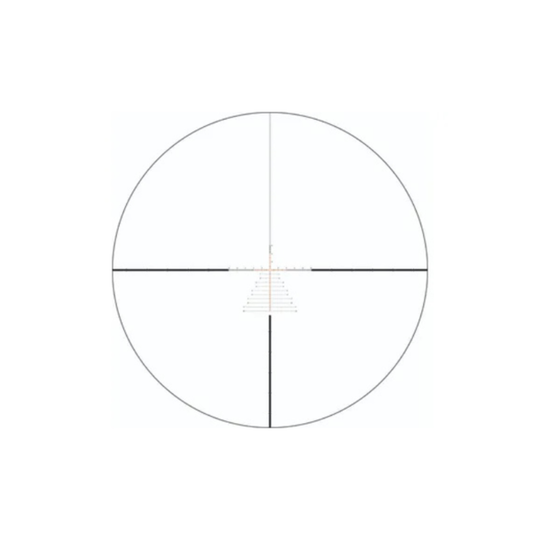

The XLR-2 reticle is an illuminated, long-range reticle with elevation and windage reference subtensions. Great for long-range shooters and hunters who prefer to hold for bullet-drop and wind at distance.

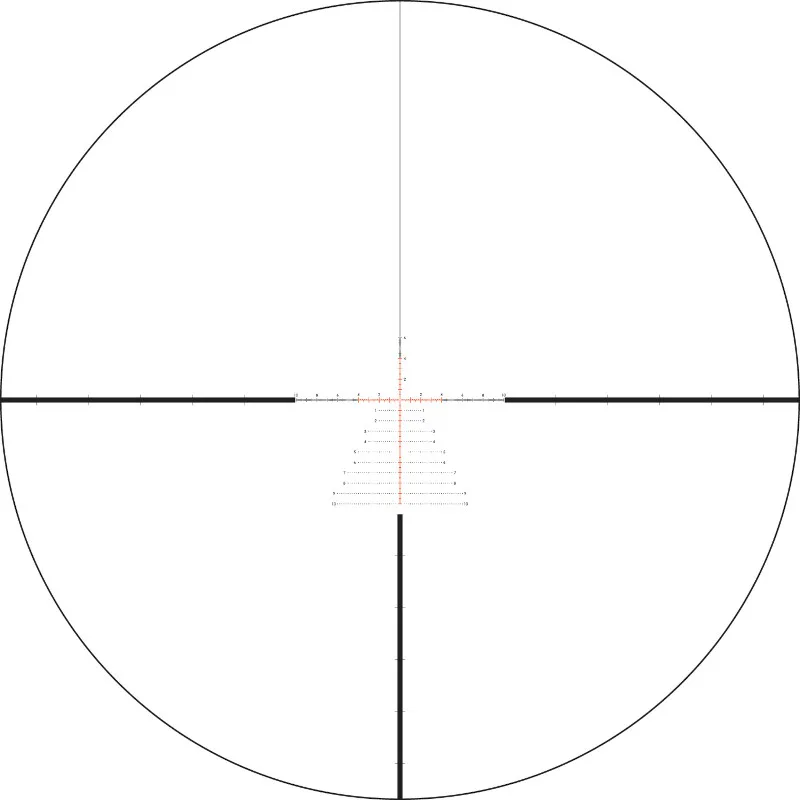

Subtension detail for Razor HD LHT 4.5-22x50 FFP riflescope with XLR-2 MRAD reticle.
Included in the Box
- Tethered Lens Covers
- Sunshade
- Lens Cloth
- RevStop Zero Ring
- CR2032 Battery
